Innovative BXT4 with EasyTrigger™ Technology

Swiss manufacturers of strapping hand
tools, machines and systems for final
packaging and transport security.
Contact Us

Our New Model

The new BXT Series, the BXT4 providing ease of use, improved performance and enhanced reliability for use across multiple applications. High-quality materials, including wear parts, meet the highest quality standards and are made of heat-treated tool steel or powder metallurgical material.

Download
Centre

Our Download Centre offers a convenient hub where you can access all the relevant materials in one place. Browse and download brochures, datasheets, and other resources to support your needs quickly and easily.
View Download Centre

BXT4 – Our Tools

Specification
BXT4-13
BXT4-16
BXT4-19
Operation Mode
Auto / Semi / Manual
Auto / Semi / Manual
Auto / Semi / Manual
Tension Force Range
400 – 1200 N (Standard)150 – 750 N (Soft)
900 - 2500 N (Standard)400 - 1360 N (Soft)
1300 - 4500 N (Standard)400 - 1600 N (Soft)
Variable Tension Speed Range
3.00
0 – 220 mm/s
0 – 150 mm/s
Application Type
Light Duty
Universal
Heavy Duty
Weight (incl. Battery)
3.8 kg (8.4 lb)
4.0 kg (8.8 lb)
4.2 kg (9.3 lb)
Dimensions
367 x 149 x 135 mm
(14.5” x 5.9” x 5.3”)
367 x 149 x 135 mm
(14.5” x 5.9” x 5.3”)
367 x 152 x 138 mm
(14.5” x 6.0” x 5.5”)
Battery Type
Bosch Li-Ion ProCore 18V, 4.0Ah
Bosch Li-Ion ProCore 18V, 4.0Ah
Bosch Li-Ion ProCore 18V, 4.0Ah
Charging Time
48 - 65 min
48 - 65 min
48 - 65 min
Cycles per Battery Charge
up to 800
up to 800
up to 800
Cycles per
Battery Charge
Low Tension: 1000
Medium Tension: 800
High Tension: 600
Low Tension: 800
Medium Tension: 600
High Tension: 400
Low Tension: 800
Medium Tension: 500
High Tension: 300
Recommended Strap
PP & PET Strap
‍
Width:
9 – 10, 12 – 13 mm (3/8”, 1/2”)
‍
Thickness:
PET 0.4 – 0.8 mm (.015”–.031”)
PP 0.5 – 0.8 mm (.019”–.031”)
PP & PET Strap

Width:
12 – 13, 15 – 16 mm (1/2”, 5/8”)

Thickness:
0.5 – 1.0 mm (.019”–.040”)
PP & PET Strap

Width:
15 – 16,  18 – 19 mm (5/8”, 3/4”)

Thickness:
0.8 – 1.3 mm (.031”–.051”)

EasyTrigger™ Technology

EasyTrigger™ Technology activates the strapping process with a simple finger pull to insert and remove the strap. This simple process and optimized tool balance reduces operator fatigue and makes the operation easier, regardless of the strapping application

Accessories

User Interface Protection
For usage in hard environments
Protection Plate
For usage on abrasive surfaces
Suspension Bow
For static location use

Training

View how to use, maintain and adjust your Signode BXT Plastic Strapping tool. A quick guide to the machine below:
Introduction Operation Adjustment Maintenance Security Reliability

Application Video

Easy Guide

Click the buttons on the screen to find out more.

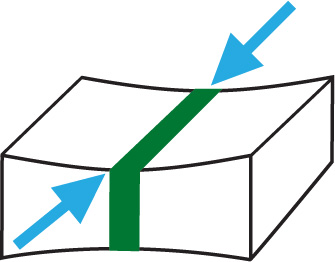

Strap Tension

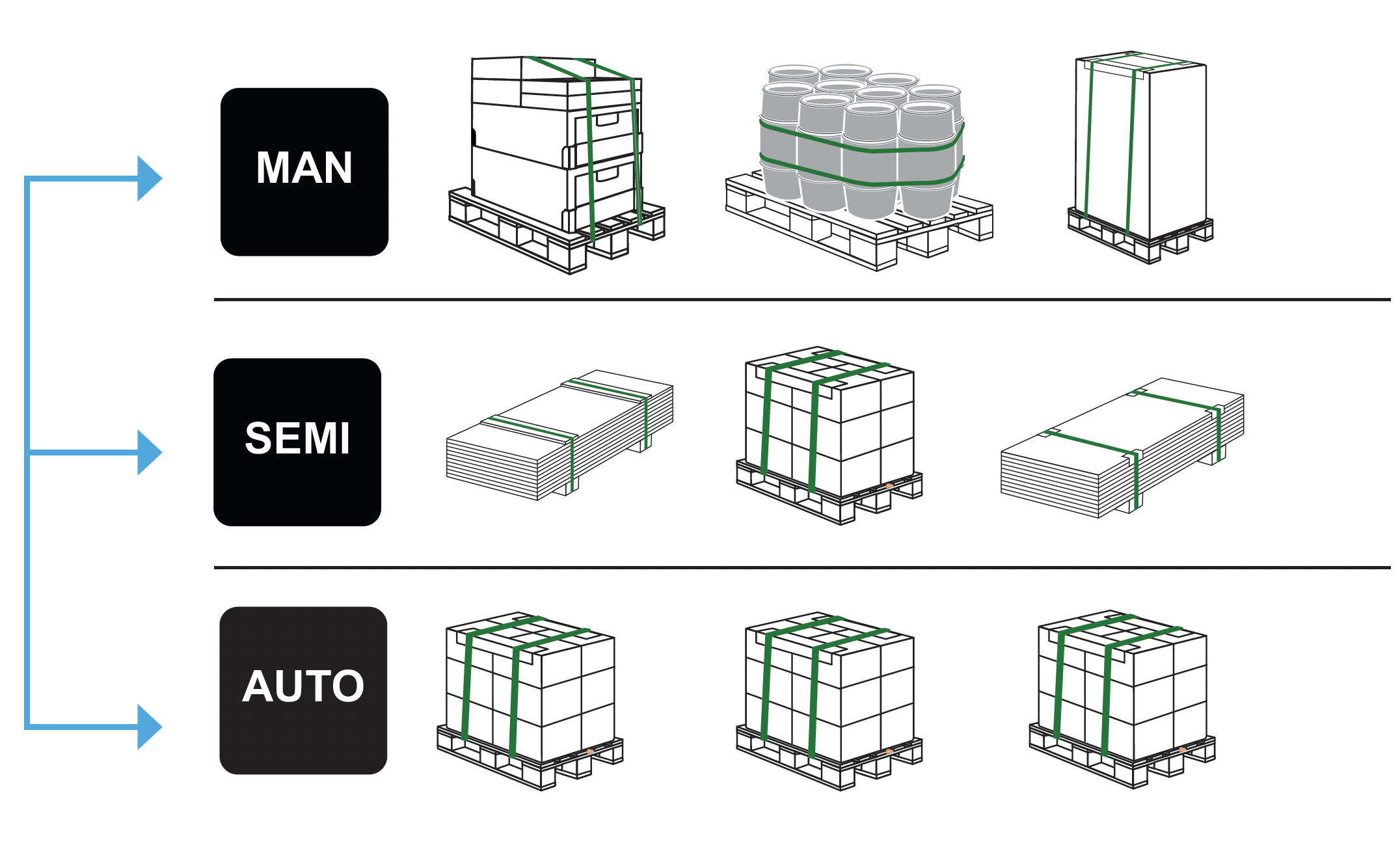

Mode Selection

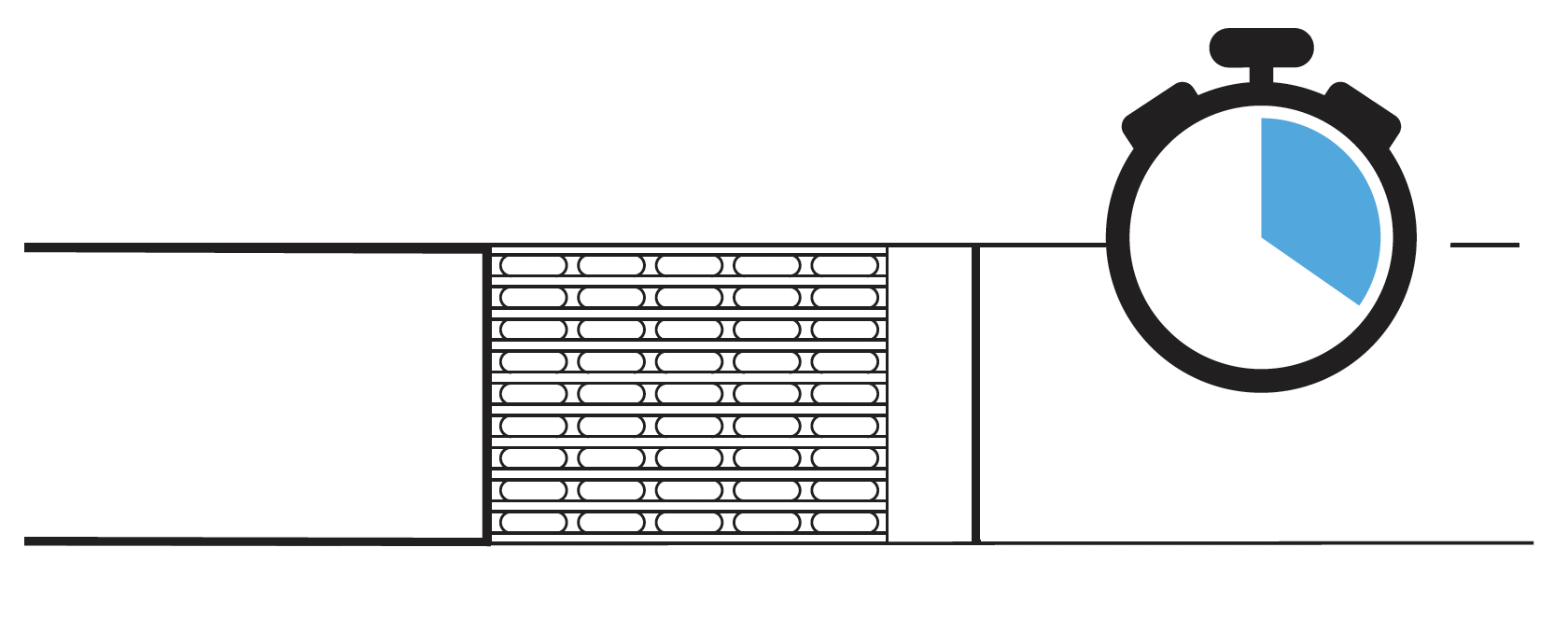

Welding Time
Settings

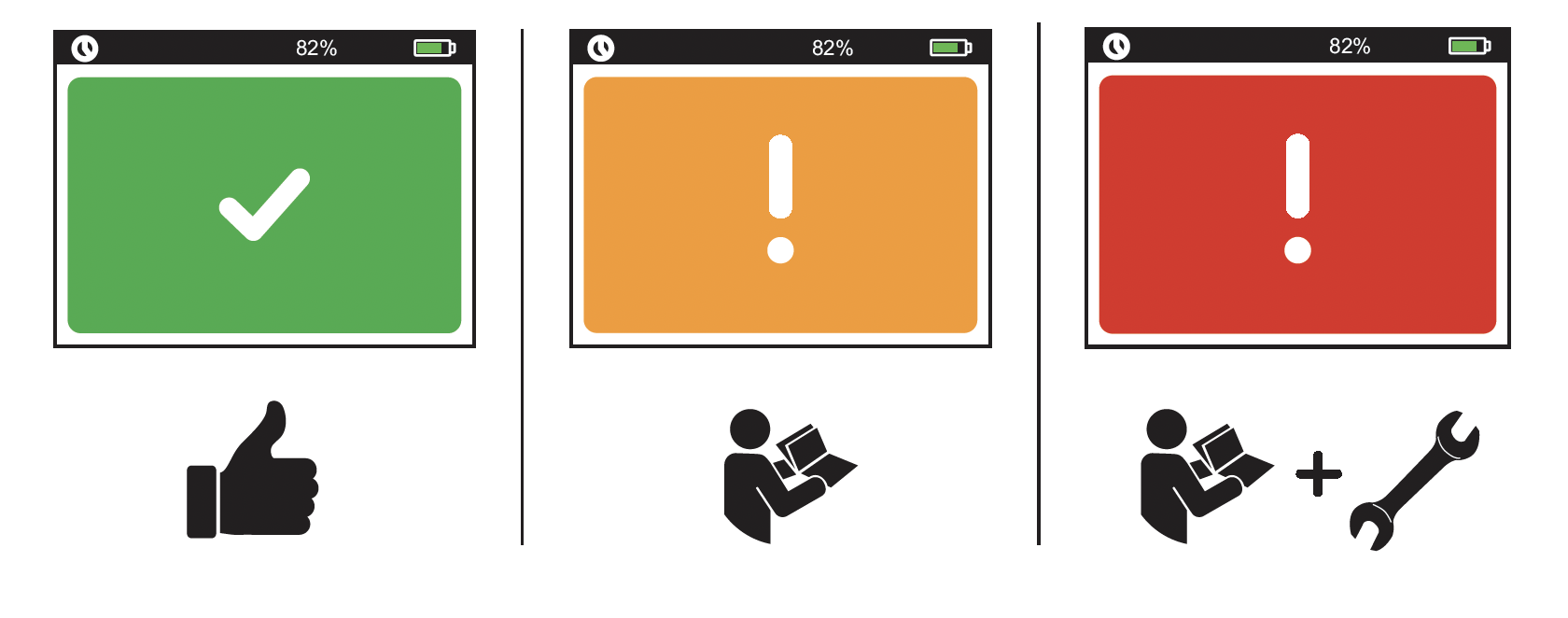

Adjust settings for the tool. See below for the three
colour coded statuses for machine operation.
Strap Type
Adjust the machine for PET or PP use
Favourite Mode
Select from your favourite settings
